RX27(RY27)-3A/3B-3W/5W/7W/10W/15W/20W (RXG6)
RX27(RY27)-3C/3D-3W/5W/7W/10W
RX27(RY27)-3D5/3D6-3W/5W/7W/10W

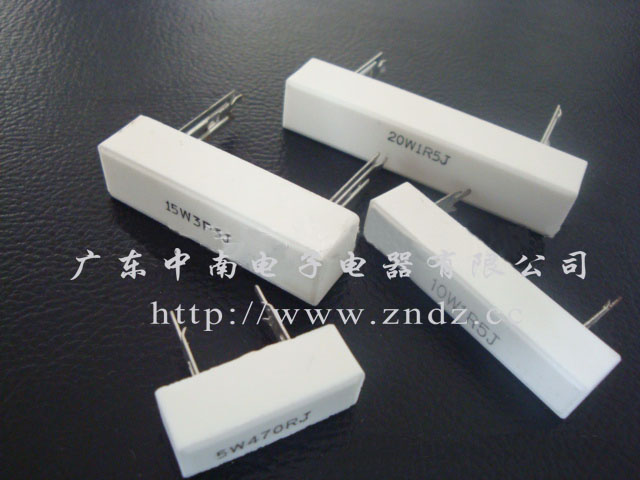

| Power Wirewound Resistors |
| radial,fibre glass core,metal oxide element ,ceramic-case |
Dimensions
 |
Technical Specifications |
RX27(RY27)
-3A/3B/3C/3D/3D5
| Type |
Resistance Range |
Dimensions(mm) |
| RX27 |
RY27 |
L |
RM |
H1 |
H2 |
h |
W1 |
W2 |
W |
| 3.0 |
390R
100K |
25.0±0.5 |
12.5 |
9.0 |
23.5/39.0/
23.5/39.5/
30.0 |
4.5+0.3 |
9.0±
0.5 |
5/7.3 |
1.5 |
RX27(RY27)
-3A/3B/3C/3D/
3D5/3D6
|
R22
3K6 |
680R
100K |
27.0±0.5 |
15.0 |
9.5 |
24.0/39.0/
24.0/39.0/
30.0/39.0
|
4.5+0.3 |
9.5±
0.5 |
5/7.3 |
1.5 |
RX27(RY27)
-3A/3B/3C/3D/
3D5/3D6
|
R39
4K7 |
680R
100K |
35.0±0.8 |
22.5 |
9.5 |
24.0/39.0/
24.0/39.0/
30.0/39.0 |
4.5+0.3 |
9.5±
0.5 |
5/7.3 |
1.5 |
RX27(RY27)
-3A/3B/3C/3D/
3D5/3D6
|
R39
6K8 |
1KOR
100K |
48.0±1.0 |
35.0 |
9.5 |
24.0/39.0/
24.0/39.0/
30.0/39.0 |
4.5+0.3 |
9.5±
0.5 |
5/7.3 |
1.5 |
RX27(RY27)
-3A/3B/3C |
R51
7K5 |
- |
48.0±1.0 |
32.0 |
12.5 |
32.5/47.5/32.5 |
5.0±0.2 |
125+0.5 |
10/- |
2.7 |
RX27(RY27)
-3A/3B/3C
|
R51
10K |
- |
63.5±1.2 |
47.5 |
12.5 |
32.5/47.5/32.5 |
5.0±0.2 |
125+0.5
|
10/- |
2.7 | |
| Characteristics |
| TEST ITEM |
SPECIFICATIONS |
| Tolerance |
±5%(J) ±10%(K) |
| Temperature coefficient |
±250× 10-6/℃，±500×10-6/℃ |
| Insulation voltage |
700V |
| Insulation resistance |
>1GΩ |
| Climatic category |
55/155/21 |
| Temperature range |
-55～275℃ |
| Derating |
when ambient temperature rise from 70℃ to 275℃,
the resistor’s allowable load down from 100% to 0% |
| Load life Rated Power,70℃,1000hrs |
△R≤±(5%R+0.1Ω) |
| Dampheat,steady state 40℃,93%,r,h,21d |
△R≤±(5%R+0.1Ω) |
| Terminations tensile strength |
△R≤±(1%R+0.05Ω) |
| Resistance to sold heat ,350℃,3.5s |
△R≤±(1%R+0.05Ω) |
| Solderability |
IEC68-2-20(1968),235℃±5℃,2±0.5s(solder bath method) | | RX27(RY27)-3H/3H2/3H4-3W/5W/7W/10
RX27-3F-15W/20W (RXG6)
| Power Wirewound Resistors |
| radial ,fibre-glass-core ,ceramic -case |
| DIMENSIONS |
 |
Type |
Demensions(mm) |
| L |
RM |
H1 |
H2 |
h |
w1 |
w2 |
w |
| RX27(RY27)-3H/3H |
25.0±0.5 |
12.5 |
9.0 |
39.0/39.0/26.5 |
5.0/4.5 |
9.0±0.5 |
73 |
5.0/3.5 |
RX27(RY27)-3H/3H/3H2/3H4
|
27.0±0.5 |
15.0 |
9.5 |
39.0/39.0/26.5
/39.0 |
5.0/4.5 |
9.5±0.5 |
73 |
5.0/3.5 |
RX27(RY27)-3H/3H/3H2/3H4
|
35.0±0.8 |
22.5 |
9.5 |
| | |
